LG-048422; 048418

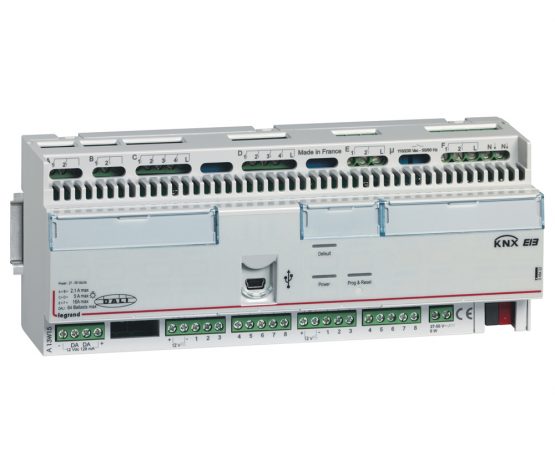

Room Controller Unit (RCU) KNX & DALI

Features

048422

  • 16 inputs – 16 outputs
  • 12 DIN modules 17.5 mm



048418

  • 8 inputs – 10 outputs
  • 8 DIN modules 17.5 mm


Room Controller Units

  • Power modules equipped with output contacts for controlling:
    • different types of ON/OFF load (lighting, roller shutters, contactors, motors, etc.)
    • a DALI dimming output for 64 ballasts max.
  • Loads are managed by the controls to which they are linked: either by BUS/KNX controls, or by wired connection input terminals (switches, push-buttons, volt-free contacts)
  • Multiphase connection and consumption measurement
  • needs external power supply 27-50 Vd.c.



Hotel equipment - KNX wiring devices

  • Directly connected to the KNX BUS (supplied with KNX connectors)
  • Programming through ETS software

The KNX solution allows the system to be interoperable with most PMS (Property Management System) and BMS (Building Management System) on the market

Other
Products

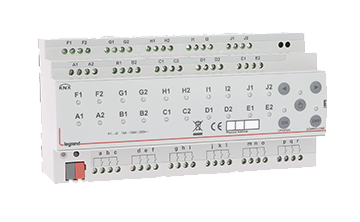

Room Controller Unit (RCU) Bacnet, DALI & SCS
All-in-one multi-application controller

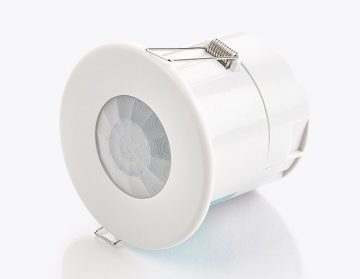

Compact, flush mounted, ceiling PIR presence detectors
