LG-002673; LG-002679

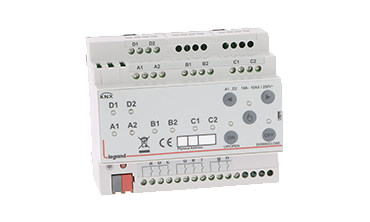

All-in-one multi-application controller

Features

002673 : 8 outputs + 8 inputs

002679: 20 outputs + 18 inputs

All-in-one multi-application controller equipped with multiple outputs capable of performing multiple functions including:
- ON-OFF lights control
- Control of shutters and curtains
- Control of controlled sockets
- control of fan coils with 2 and 3 point valves
Suitable for managing resistive, capacitive, inductive loads and fluorescent lamps with different functions.
Independent input channels operating as a universal interface with the following functions: switch /button input, dimmer control, shutter / blind control, value sending, scene control, counter for counting pulses.
Each output can be controlled via traditional electromechanical devices or KNX devices
Configuration via ETS software.
Bus connection via red-black KNX connector.
Power supply SELV 29V d.c from KNX bus (< 10mA).
DIN rail installation.

LG-002679

LG-002673
