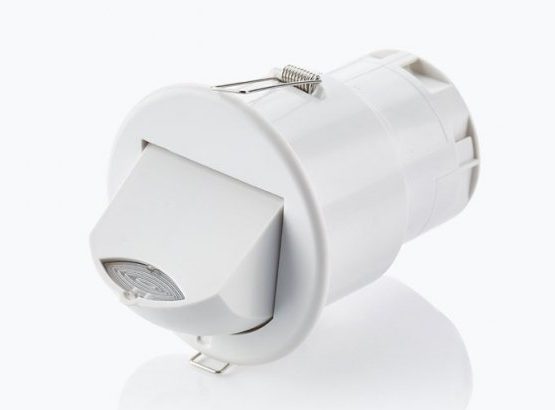

Adjustable head, long range, flush mounted, ceiling, microwave presence/absence detectors

MWS3A

Adjustable head, long range, flush mounted, ceiling, microwave presence/absence detectors

Features

Unique adjustable head design to achieve detection pattern that is required
Locking mechanism to prevent tampering
Can be flush or surface mounted
IP40 rated

Available options:

PRM – 1 channel
PRM-LV – Low voltage
2CH – 2 channel
2CH-NC – 2 channel normally closed fail-safe
VFC – Voltage free contact
VFC NC – Normally closed
VFC LV – Volt free contact, low voltage
AD – Analogue dim
DD- Digital Dim (Dali/Dsi)
KNX

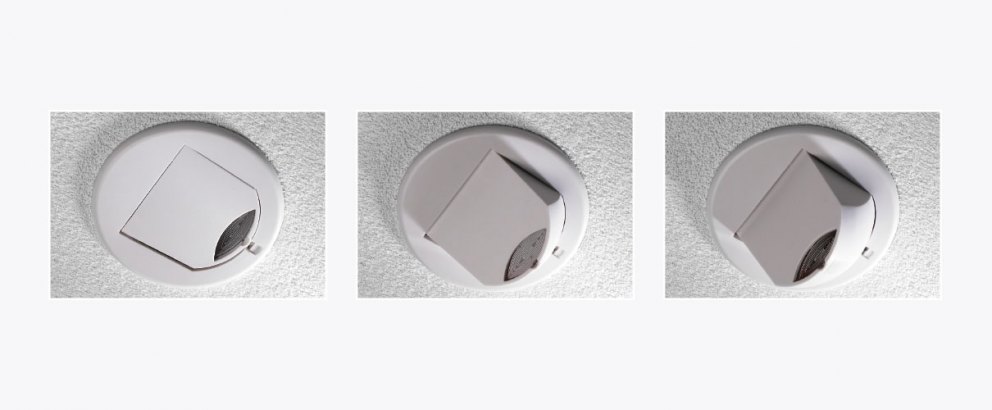

Unlike fixed head microwave presence detectors the MWS3A offers a unique presence/absence detection capability by using an adjustable head.

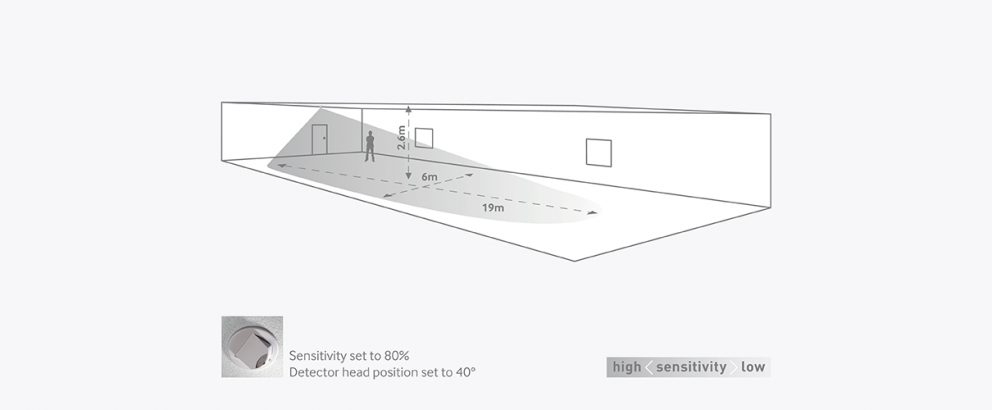

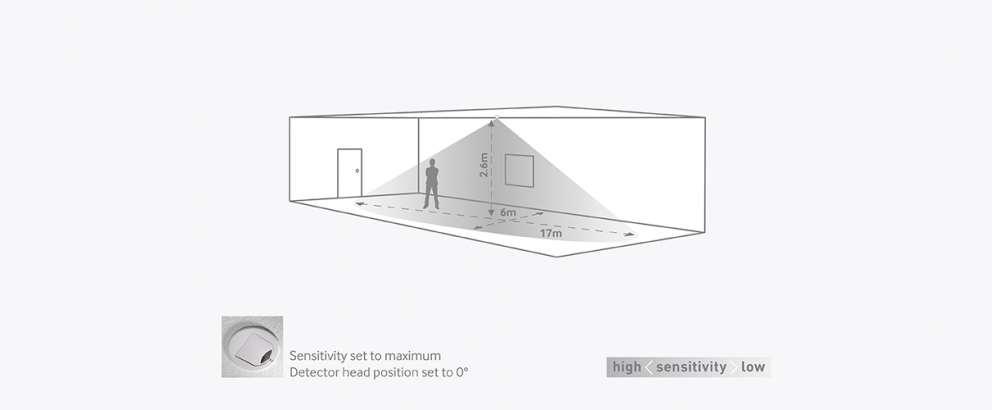

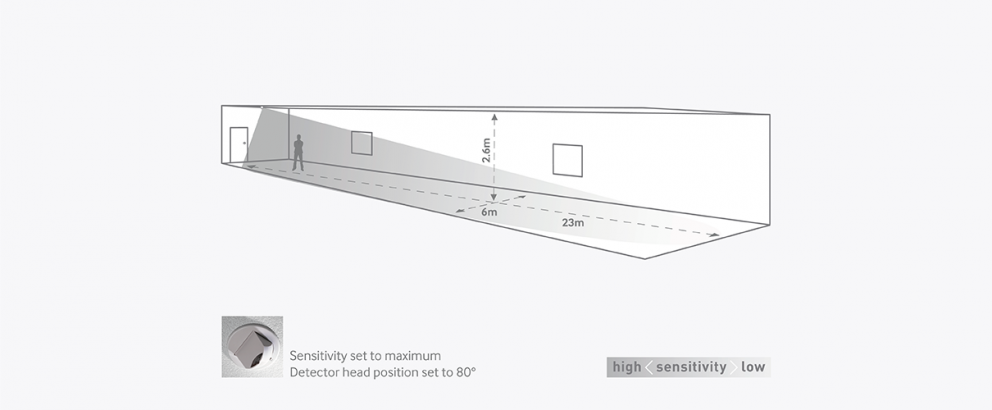

This incorporates an innovative locking mechanism to prevent tampering. By changing the angle of the head, different detection patterns can be achieved to suit the application. An integral sensitivity adjustment allows the detector to be fine tuned to its environment.

The MWS3A is ideal for corridor lighting control.

The microwave presence detector is self contained and can be flush or surface mounted using a separate detector back box. The microwave sensor is sensitive to movement. The simple plug in connections reduce installation time.

The optional infrared remote handset allows the user to override the set up on some models. Functionality is fully programmable using either the UHS5 or UNLCDHS handsets.

For Product Guides for earlier versions with manual control, search for the guide via the Support Services Products Guides page.
