MWS1A

Long range, back box mounted, microwave presence detectors

Features
    • Presence detection
    • Detection range of up to 25 metres
    • Suitable for heating and ventilation applications
    • Compatible with European back boxes
    • Fixing screw cap covers – smooth plate finish

    Functionality is fully programmable using either the UHS5 or UNLCDHS handsets.

    Available options:
    • PRM – 1 channel
    • LV – Low voltage
    • VFC – Voltage free contact

The MWS1A is a series of low profile, contemporary styled microwave presence detectors that provide automatic control of lighting, heating or ventilation loads, via highly sensitive microwave technology. Low power microwave signals are emitted and then measure the reflections as the signals bounce of moving objects.

The MWS1A is optimised for wall mounting applications where long distance detection is required.

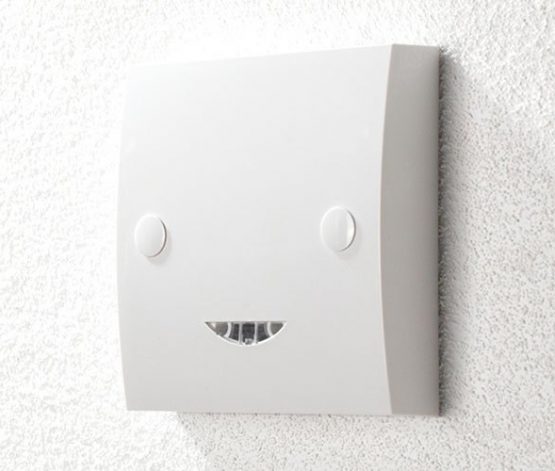

mws1a

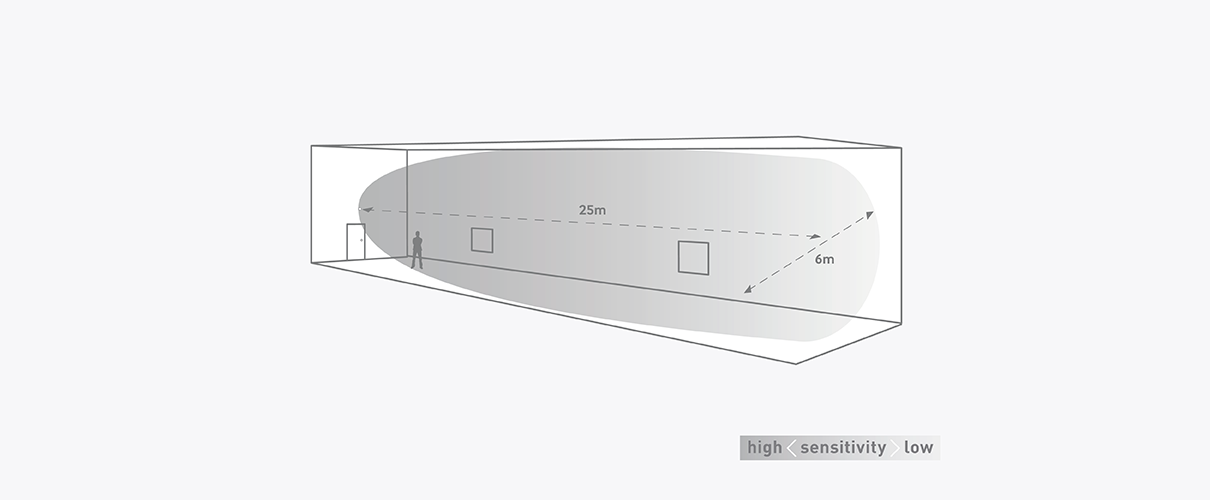

MWS1A-coverage

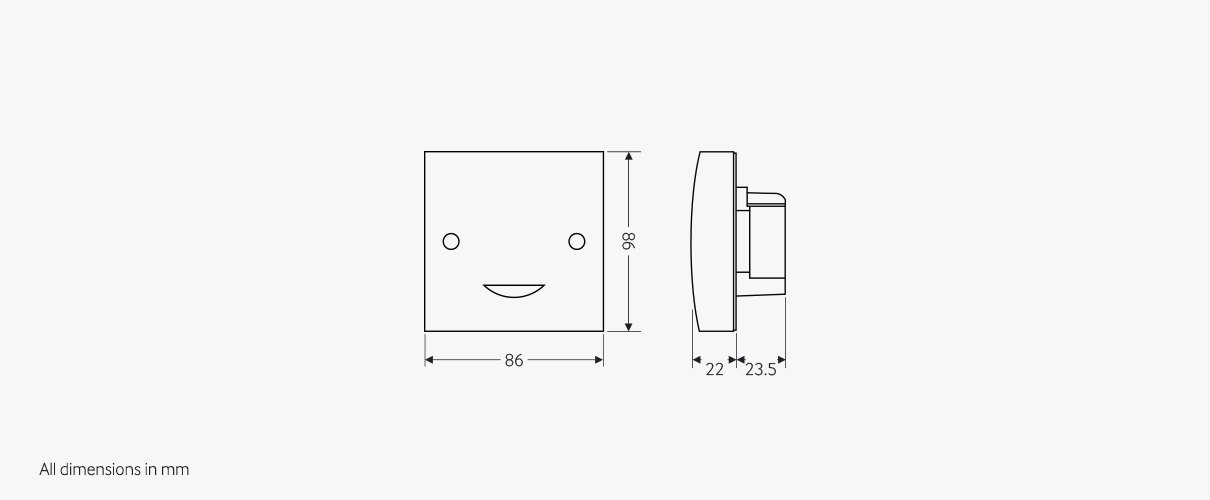

MWS1A_dimensions
