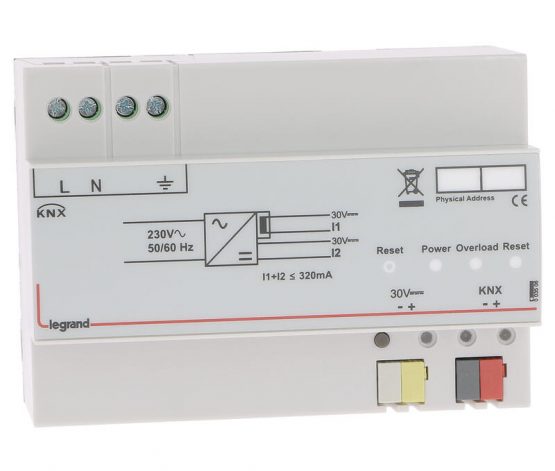

LEGRAND KNX Power Supply is available in two models: 320 mA and 640 mA.
Voltage output is short-circuit and overload protected.
The bus line is decoupled from power supply by an integrated choke.
Both models have an additional 30 VDC short-circuit and overload
protected voltage output.
KNX modular power supply with RESET button and signaling LED for:
Bus connection via red-black KNX connector.
Input voltage: 120-230V at 50 … 60 Hz.
Output voltage: 29V + 2 / -1V d.c. SELV.
Auxiliary output voltage 29V + 2 / 0V d.c. SELV.
Output current:
LG-003506: 320mA
LG-003507: 640 mA
Installation on DIN rail, dimensions 7 DIN modules
