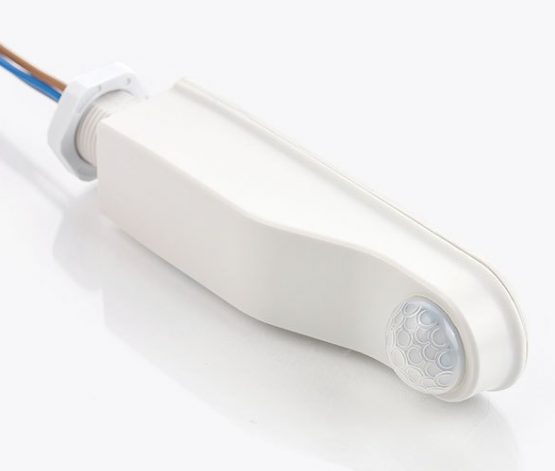

Luminaire mounted, miniature, retrofit, PIR presence detectors

EBMPIR-MB

Luminaire mounted, miniature, retrofit, PIR presence detectors

Features

Batten mount retrofit system
Integrated unit: no separate power supply required
IP65 rated

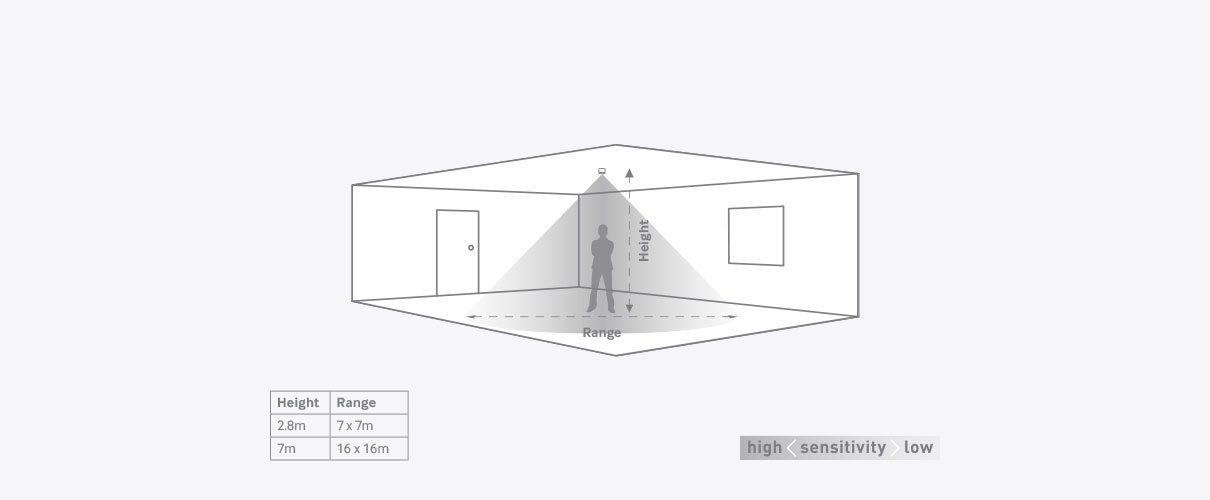

Movement detection up to 7 metres high
Suitable for a wide range of luminaires

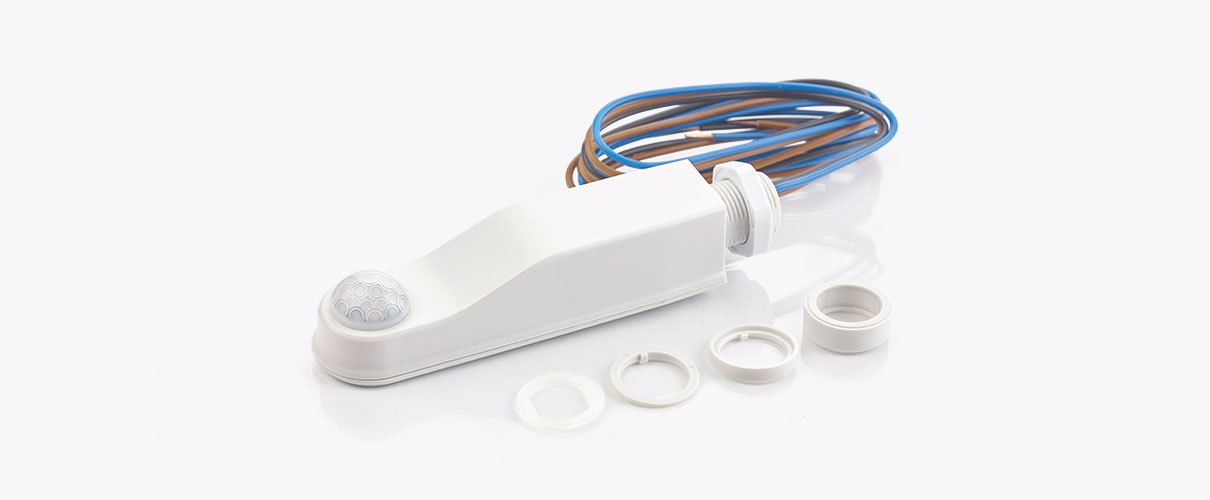

Supplied with comprehensive fitting kit
Pre-wired with 1m cable length
5 year warranty

Available options:

PRM – 1 channel
AD – Analogue dim
DD- Digital Dim (Dali/Dsi)
LT30 – Low temperature

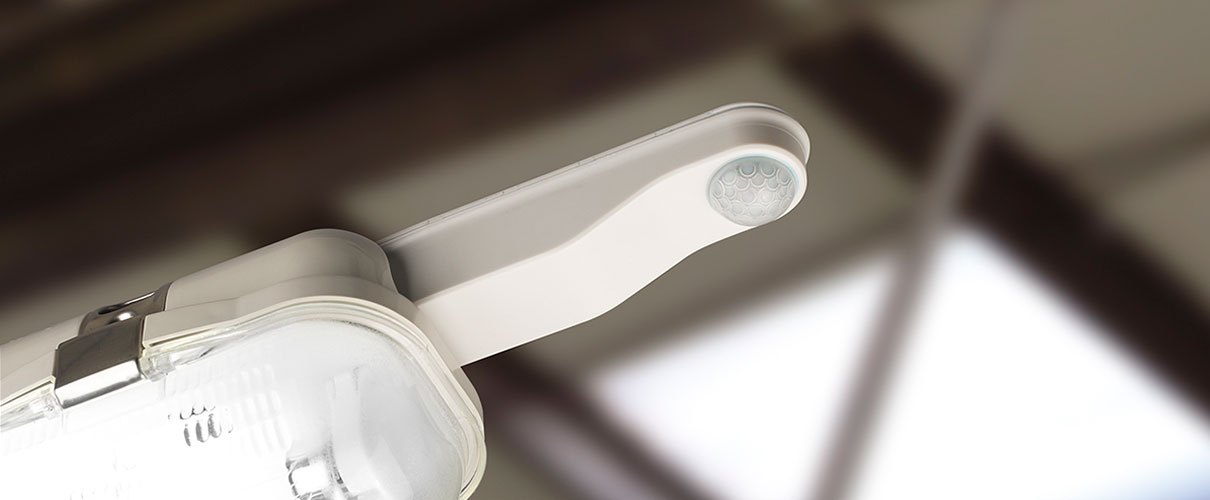

The EBMPIR-MB series of batten mount PIR presence detectors provide automatic control of lighting loads. It has been specifically designed for mounting onto a batten style luminaire allowing retrofit upgrades to existing lighting systems. The units are IP65 rated and are therefore suitable for outdoor use as well as wet and wash-down areas.

Three models are available: premium (PRM), direct dim (DD), and analogue dim (AD) all of which will switch a wide range of luminaires. The direct dim variant controls DALI or DSI digital dimming ballasts, whilst the analogue dim variant controls 1–10V dimming ballasts. Functionality is fully programmable using either the UHS5 or UNLCDHS handsets.
