Luminaire mounted, IP65, high bay/high level, PIR presence detectors

EBDHS-MB

Luminaire mounted, IP65, high bay/high level, PIR presence detectors

Features

Key features:

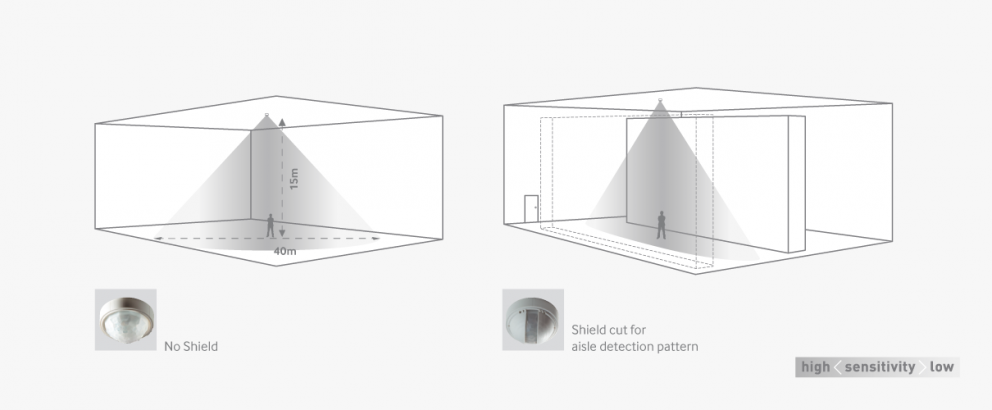

Ground breaking detection range up to 40m at a 15m mounting height, ideal for warehouse lighting control
Unique lens technology – high sensitivity within the detection range
Ideal for high bay applications

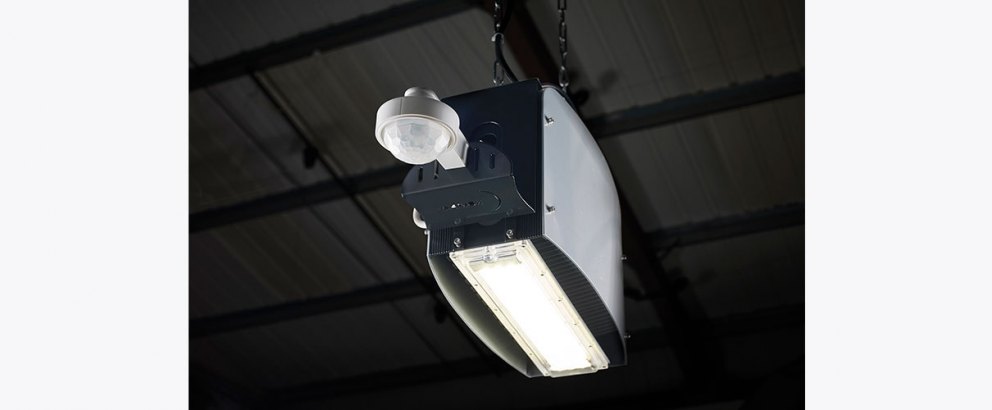

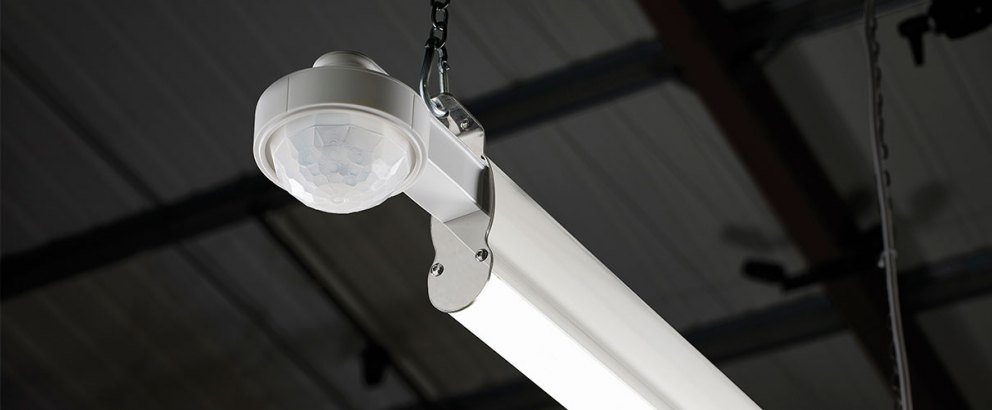

Easy to retrofit to commercial luminaires and basic battens
IP65 rated therefore suitable in damp and wash-down areas

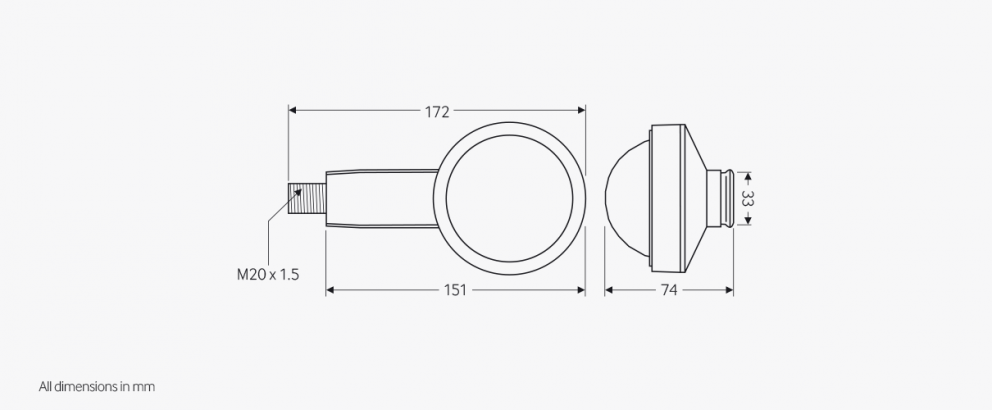

Quick install via M20 gland

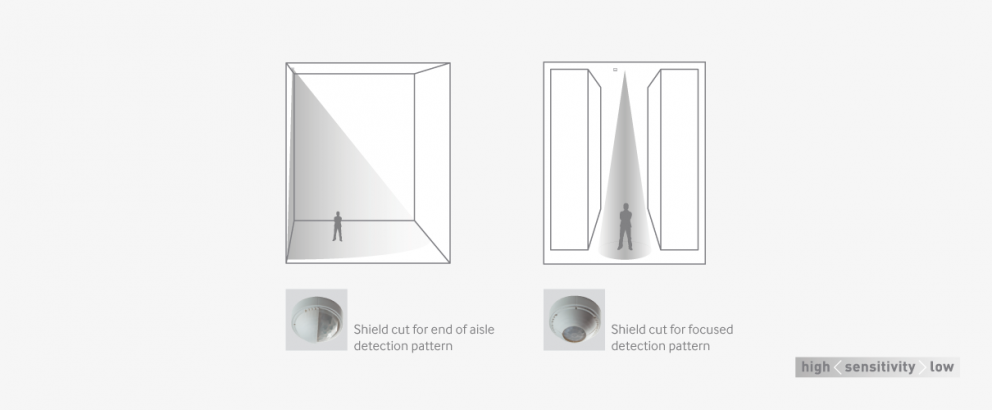

Adjustable masking shields to allow for precise masking of the detection shape

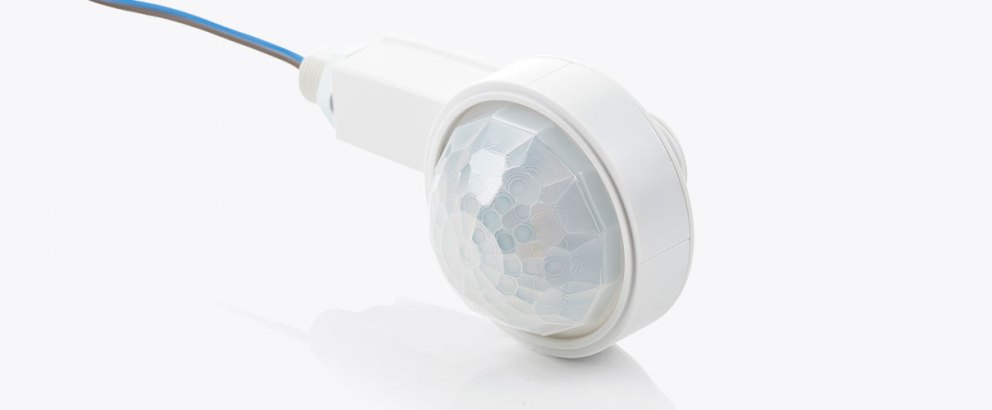

1000mm cable length

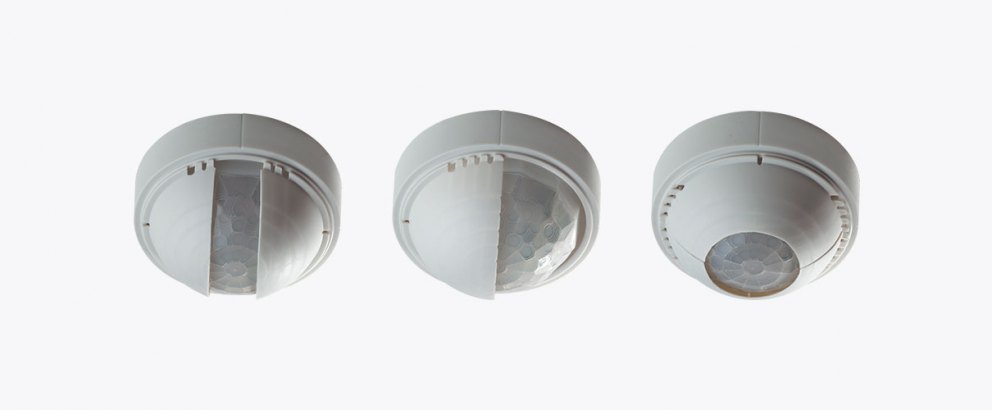

Supplied with two masking shields
5 year warranty
Available options:
- PRM – Premium 1CH
- AD – Analogue dim
- DD- Digital Dim (Dali/Dsi)
- LT30- Low temperature

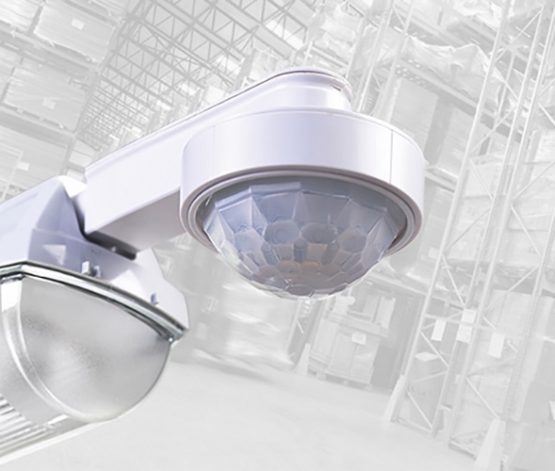

The EBDHS-MB luminaire mount high bay PIR presence detector range provides exceptionally sensitive and long range detection. The detectors are ideal for high bay, high level lighting control in areas with demanding spaces and increased mounting heights such as warehouses and factories, and are simple to retrofit to commercial luminaires and basic battens.

Three models are available: premium (PRM), direct dim (DD), and analogue dim (AD) all of which will switch incandescent, fluorescent, compact fluorescent and LED lighting. The direct dim variant controls DALI or DSI digital dimming ballasts whilst the analogue dim variant controls 1–10V dimming ballasts.

All functionality is fully programmable using either the UHS5 or UNLCDHS handsets.
